Terms like Loft, Contour, Ordinates, Lines, and Layout are likely not the first words that come to mind when you think about designing an aircraft. However without these items, standardizing the production of large numbers of aircraft during WWII would have been impossible. Designing an aircraft is a complicated process, and if you’re reading this it means you’ve either come across these 5 terms, or have an interest in learning more about why they are so critically important.


Very often in general discussions, the terms loft, contour, lines, layout, and ordinates are used interchangeably. At a high level, this is appropriate because all of these terms can describe and illustrate the “shape of an aircraft”. When looking at an aircraft profile as a silhouette, the line that can be drawn around the outside edge is the loft or contour line (figure 1). The straight lines and curves that make up this outside edge are the result of meticulous mathematical calculations that were done by the “loftsmen” in WWII aircraft factories.


Curves are the most difficult shapes to communicate on any engineering drawing, and lofting is the practice that allows for accurate reproduction of curves, and assures that every serial number within a given aircraft model range has an identical profile.

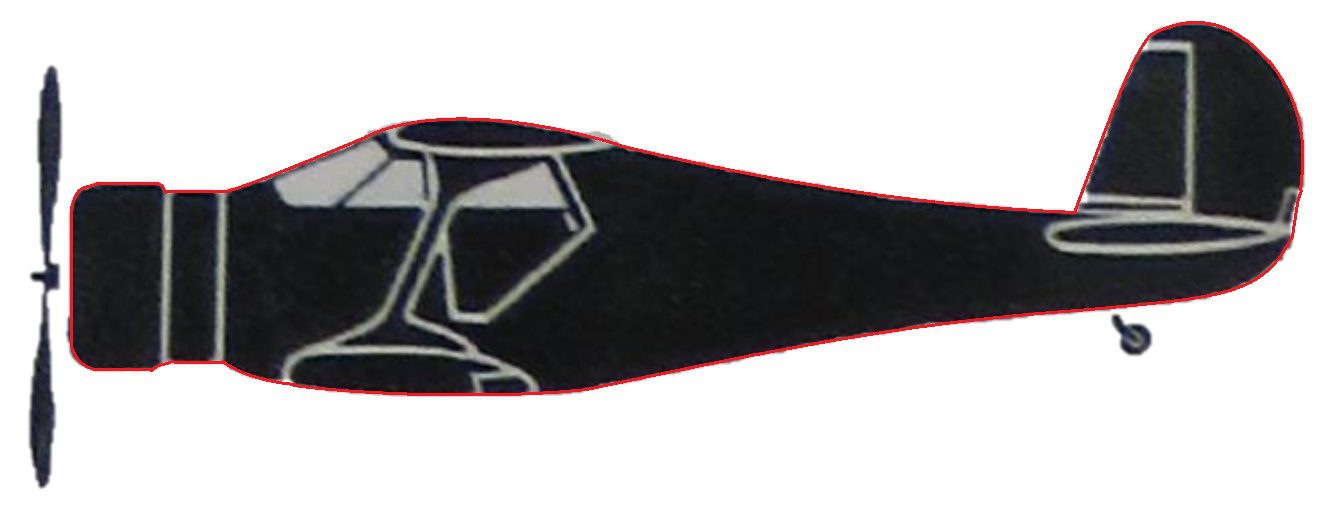

Figure 1 - Profile of Beechcraft GB-1 Staggerwing with loft line marked in red.

Without loft calculations, the production of accurate tooling and manufacturing would be impossible. If you are familiar with photographs from WWII that show groups of engineers laying on the floor all working on the same massive “drawing” – this is lofting (figure 2). Loft drawings, or layouts, were most commonly done on large sheets of metal or wood, and were made in full scale at a tolerance of no less than 0.007 inches. In his 1946 book “Aircraft Drafting”, Hyman Katz describes the importance of accurate layouts by saying:


“When the layouts have been completed and checked, the loft must then provide templates for all parts and the tools that the shop will need in fabricating all sections of the plane. It is also the responsibility of the loft to furnish any special information relative to the lines or any detail parts of the plane to engineers, tool designers, or shop workers to aid in design, tooling, or fabrication.”

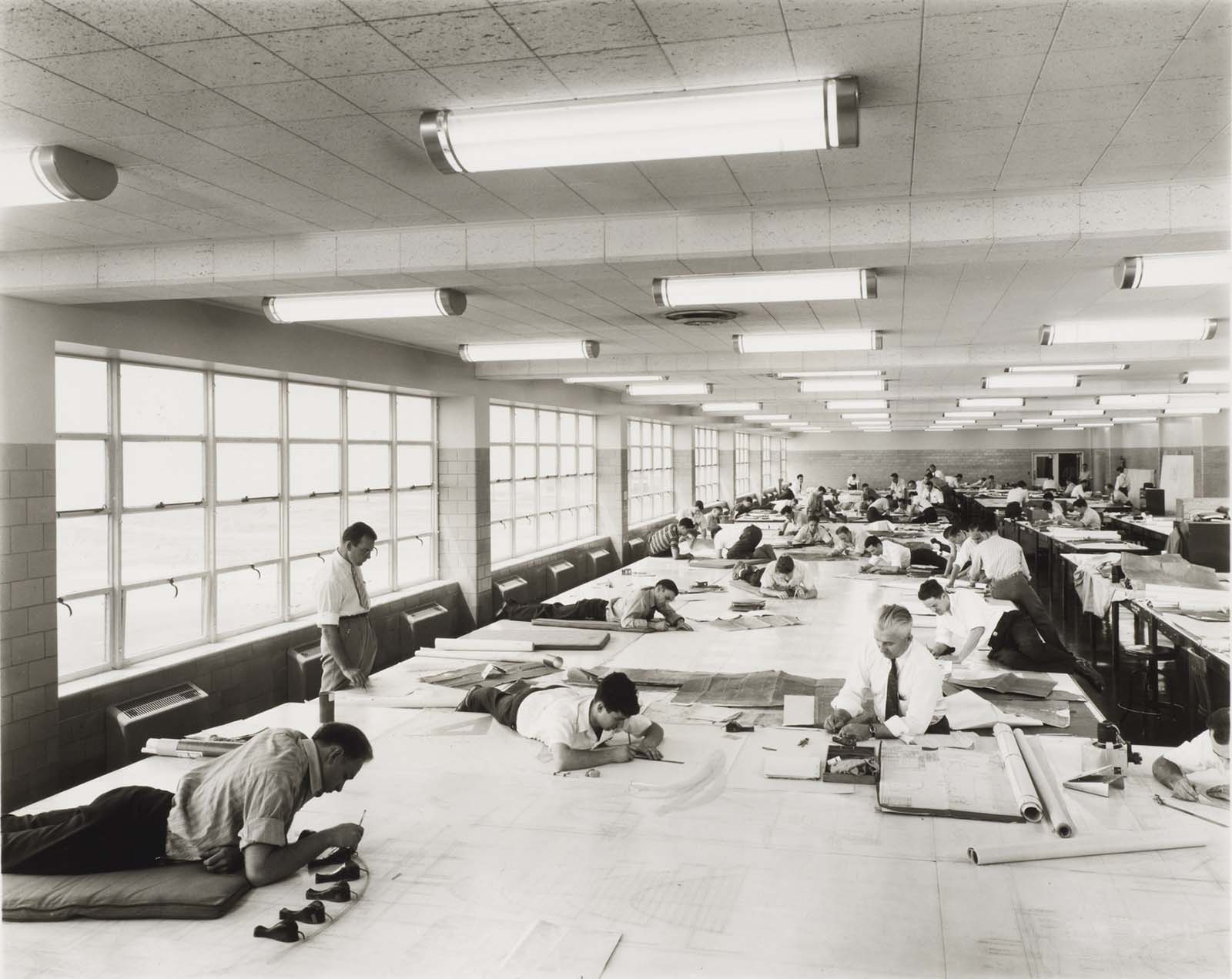

Figure 2 - Loftsmen in the aircraft industry often used rolling dollies to lay on their stomach and move around huge drawings easily. Photo courtesy of rarehistoricalphotos.com

Once the loft was finalized, the wood or metal layouts would then be photographed for use in the factory setting. If you have ever been frustrated by not being able to locate a layout that is listed on an engineering drawing (figure 3), that is because you are actually attempting to locate the huge metal or wood plate that would have been stored in the factory!


During and after WWII Loftsmen and Engineer/Draftsman worked together to create standard engineering drawings that functioned within the loft parameters, assuring that the parts fit exactly, and could easily be mass produced. Using the data from both the loft and engineering drawings, templates could be created, and were stored in the factory to create dies and tooling. There is a great Grumman F6F Hellcat promotional video from 1944 on YouTube that shows a bit of the process of creating templates – see minute 12:53.

So now that we know a bit more about what lofting is, let’s look at an actual example. Because loft data defines the outside line or shape of the aircraft, it makes sense that these drawings would also be called “contour drawings”. Contour is a word that will often be seen in the title block of a drawing indicating loft data. Loft or contour drawings are easy to pick out because they either contain nothing more than large tables of decimals or fractions (figure 4), or a series of concentric lines getting larger or smaller (figure 5).

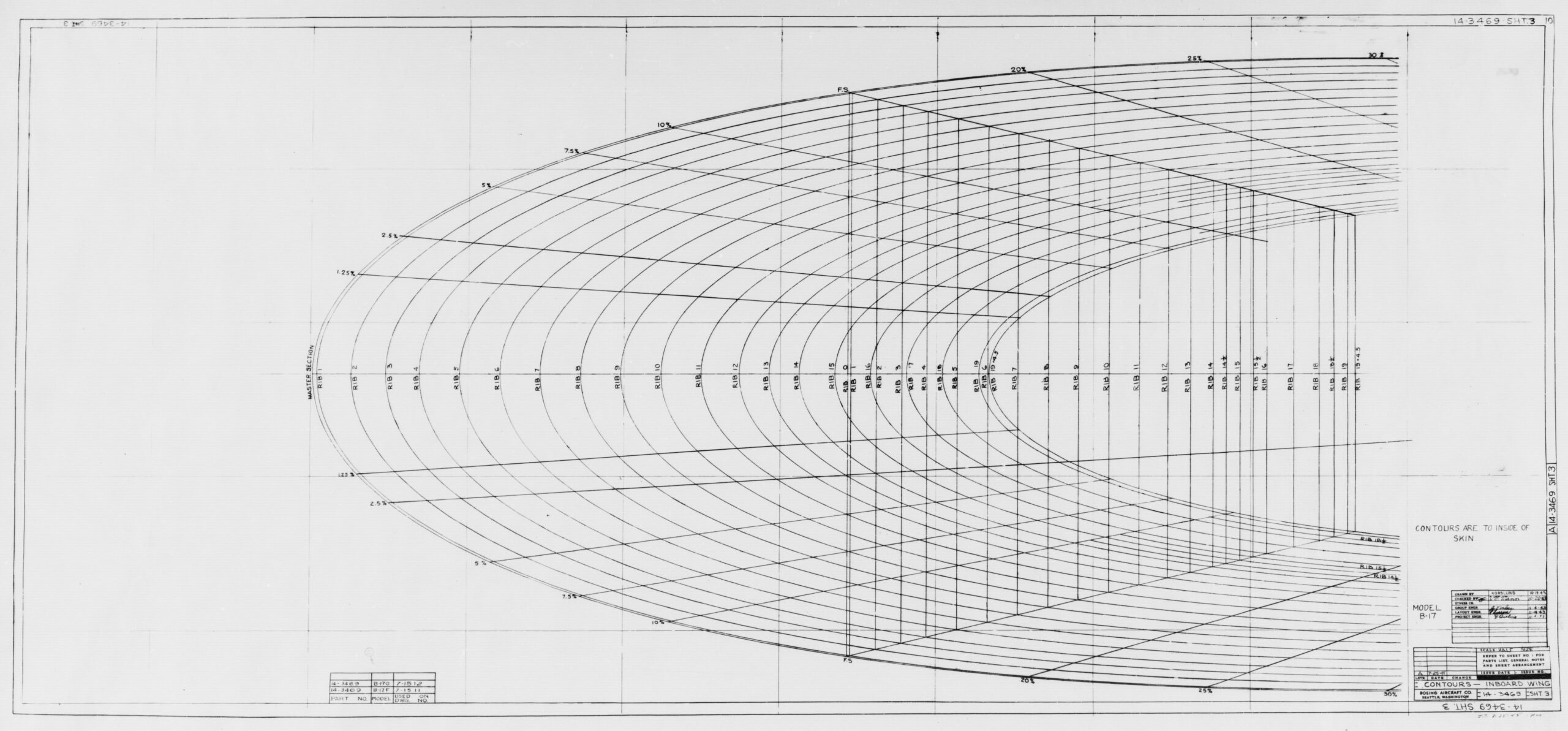

Figure 4 - One page of the inboard wing contour drawing (14-3469) for the Boeing B-17 by rib number.

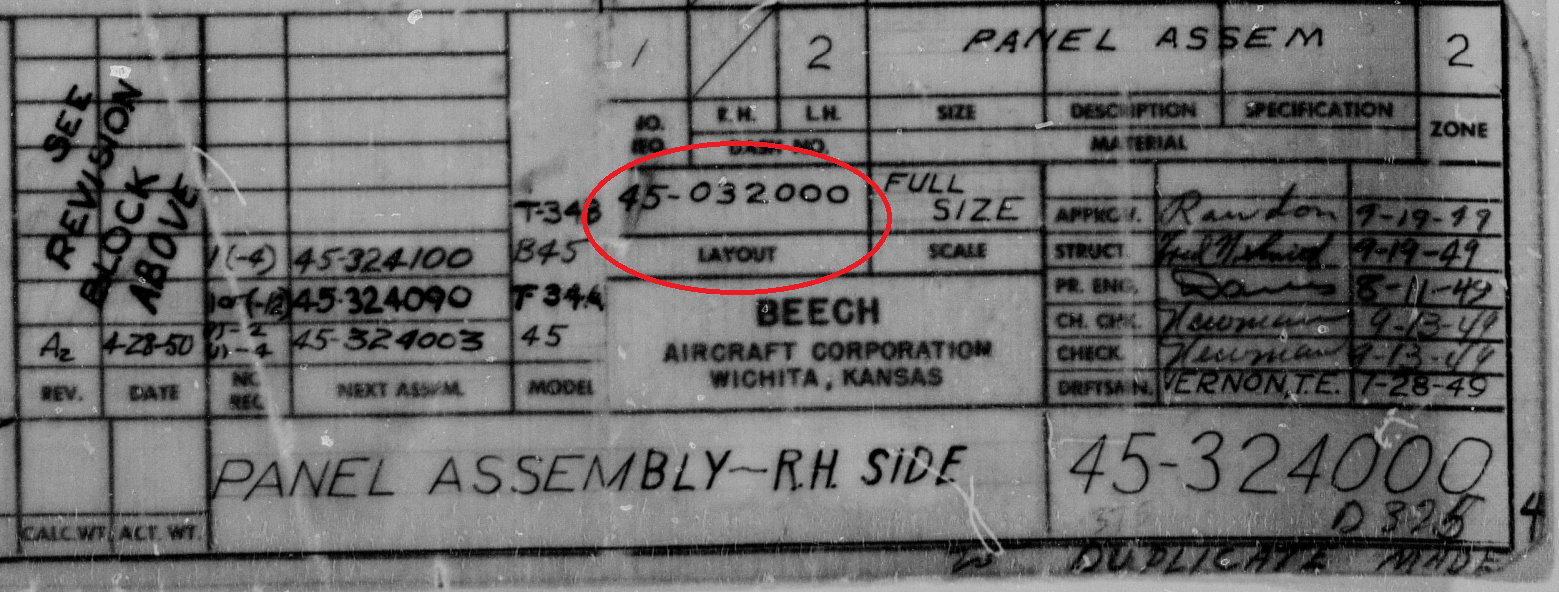

Figure 3 - The title block of Beechcraft T-34 Mentor drawing 45-324000 lists layout 45-032000 as a reference. This full scale layout would provide the mathematical figures required to recreate the exact curvature for reproducing the panel assembly illustrated in this drawing.

Determines the lines of an aircraft, and furnishes offsets and ordinates


The outside shape of an aircraft seen from the plan, side, and end views.


The dimensions from the horizontal and vertical center line of the plan to its contour or skin line.


The dimensions above and below the chord plane of the wing to its contour or skin line.

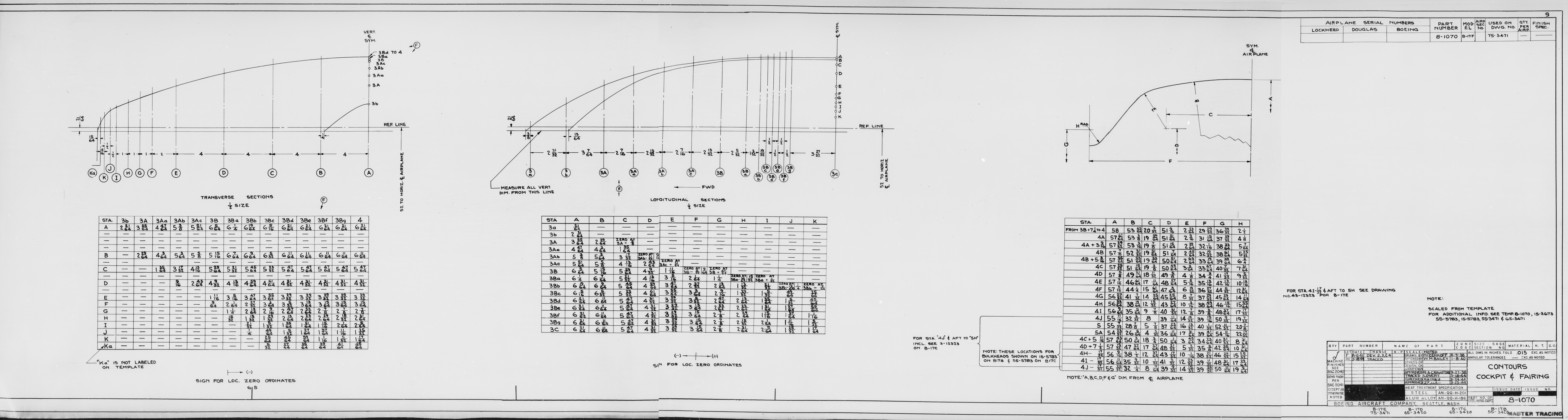

Figure 5 - The contour drawing (8-1070) for the Boeing B-17B, C, D, and E cockpit and fairing showing the transverse and longitudinal cross sections and their accompanying mathematical tables providing calculations by station.

If you are someone who enjoys redrawing historic engineering drawings in CAD programs, then you’ve likely come across the need for the data contained on loft or contour drawings. There is not a week that goes by where I don’t get a question about loft, ordinates, or contours at AirCorps Library. However, my answer is usually not satisfactory because this data is often not available.

Where has all the lofting gone?

If loft data is so crucial, the next logical question is “why can’t I find it on AirCorps Library?”. The simple answer is that most manufacturers didn’t include this data with the rest of the regular engineering drawings. It is my personal opinion that loft and contour data was considered more valuable and more highly classified than regular drawings. Now that we’ve discussed that loft was the basis for everything in the aircraft, it is logical to assume that aircraft manufacturers were keenly aware that if their loft data fell into the wrong hands, it would be the key to reproducing an exact replica of the aircraft in question.


Some manufacturers, like Lockheed, occasionally included bits of lofting data on individual engineering drawings. This happened most commonly for smaller parts and components (figure 6), and extremely rarely for larger assemblies like the wing or fuselage.

There are small selections of loft data included on the microfilm for several WWII aircraft, but it is quite rare to find a complete set of loft/ordinates. At AirCorps Library we always make loft data available if it is found on a set of microfilm for an aircraft. Unfortunately, that means if we don’t have it on the site, it didn’t come on the microfilm.


When restoring a WWII aircraft, the only way to gather the necessary lofting information when an official contour drawing is not present is to 3D scan the area of the aircraft in question – something that we do regularly at AirCorps Aviation. If you have an interest in the incredibly technical (but fascinating) world of 3D scanning, check out the two blog posts written by our in-house 3D scanner Stefan Hokuf. The first discusses what 3D scanning is, and the second outlines different types of scanning, and what to know before having a part scanned.

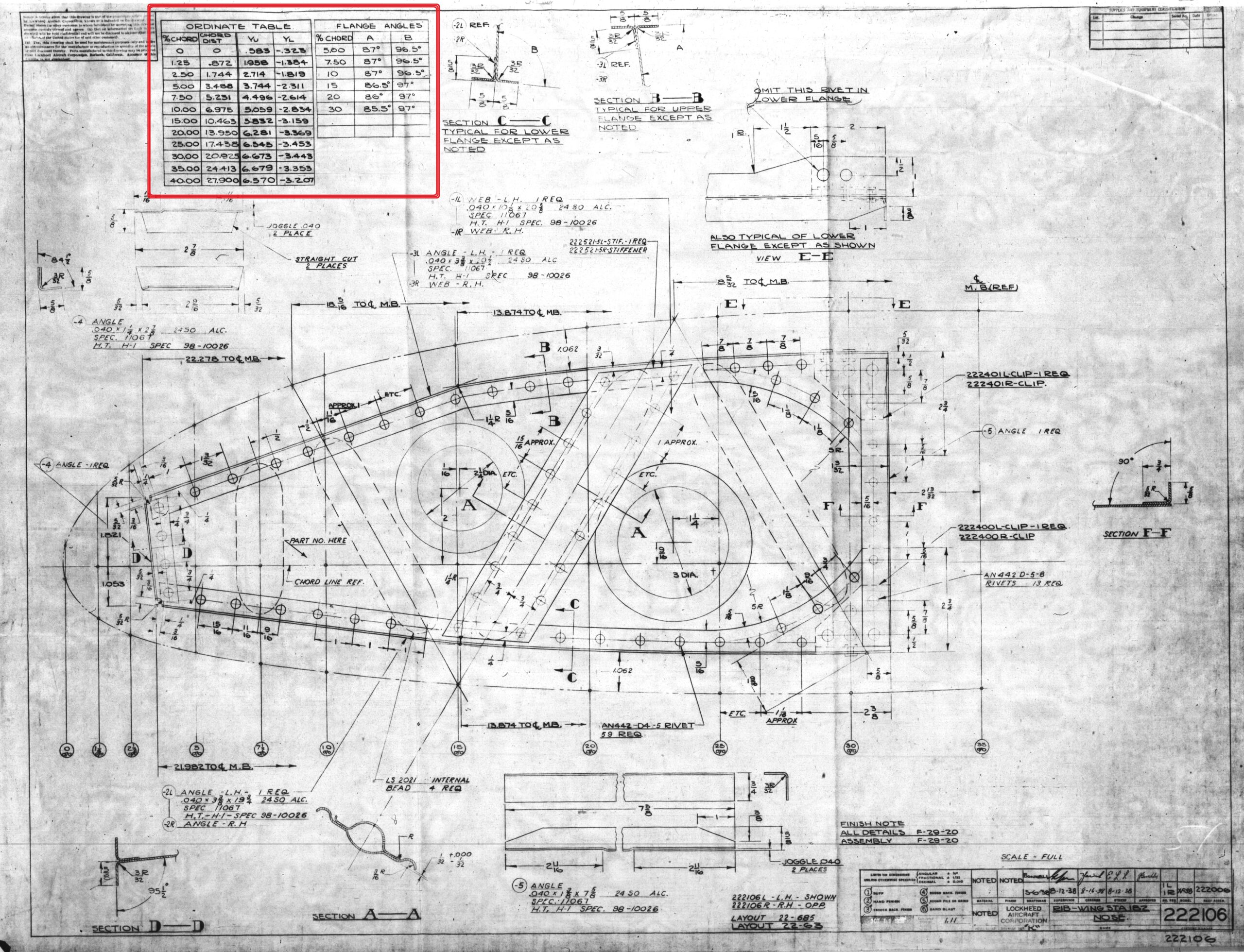

Figure 6 - Drawing 222106 illustrates the rib for wing station 182 on the Lockheed P-38 Lightning. Note the ordinates table in the upper left (outlined in red). Interestingly, there is no indication in the title of this drawing that it contains ordinates information.

What loft info do we have?

Because loft, ordinates, and contour questions are so common, I wanted to write this blog not only to explain what it was, but also to outline what loft data we DO have on the AirCorps Library website. The chart below outlines the available loft, contour, layout, line, and ordinates drawings for different aircraft, illustrating just how much is (and is not) available. Each part number in the charts below is linked and will take you to the given loft or contour drawing (if you have an active AirCorps Library membership).

Ordinates for Beechcraft Model 17 Staggerwing

Part Number



Loft Layout – Upper and Lower Wing


Ordinates Wood Fairing


Ordinates Front Fuselage Cowling

Ordinates for Boeing B-17 Flying Fortress

Part Number



Contours – Inboard Wing


Contours – Cockpit and Fairing


Rib Contours Stabilizer


Ordinates Empennage Rib


Fairing Ordinates Top Gun Replacement


Ordinates Stabilizer Rib


Ordinates Wing Rig


Rib Ordinates Vertical Tail Surface


Lines Rear Gun Enclosure Fairing


Lines Fin Fairing – Station 8-11

Ordinates for Boeing PT-17 Stearman

Part Number



Ordinates – NACA 2213 Airfoil 60” Chord


Ordinates for Chance-Vought F4U Corsair

Part Number



Lines and Ordinates – Body Group Fuselage


Lines and Ordinates – Fuselage – Cockpit Cabin – Windshield and Sliding Section


Lines and Ordinates – Fuselage – Cockpit Cabin – Windshield and Sliding Section


Lines Bod Group Fuselage F4U-1


Windshield Lines


Lines Cockpit Cabin – Sliding Section


Lines Center Section – Air Duct Internal

Ordinates for Consolidated PBY Catalina

Part Number



Form Contours – Hull Partitioning Strip – Pilots Enclosure


Ordinates – Cell Self Sealing – Wing


Ordinates – Cell – Self Sealing Wing


Lines – Hull – Nose


Float Lines – Wing Tip

Ordinates for Curtiss P-40 Warhawk / Kittyhawk

Part Number



Loft Lines – Engine Cowl Allison Y-1710 F3R Body Plan


Ordinates Wing Bulkhead and Jig Section


Fuselage Ordinates


Ordinates – Engine Cowl (PGW-R1830-13)


Ordinates – Wing Bulkhead and Jig Sections YP-37


Lines Radiator Fairing


Lines Landing Gear Cowling


Lines Fuselage Stabilizer Fairing


Lines Fuselage


Lines Cowl


Basic Cowl Lines


Lines Layout Oil Cooler and Carburetor Entrance Duct


Lines Layout Keel Fairing


Fuselage Structural Layout


Fuselage Structural Layout

Ordinates for Douglas A-24 Banshee (SBD Dauntless)

Part Number



Wing Lines Drawing and Master Diagram


Ordinates for Douglas DC-6

Part Number



Loft Data Index


Ordinates for Grumman F4F Wildcat

Part Number



Lines Steel Droppable Tank Contour


Wing Datum Points and Reference Lines

Ordinates for Grumman F6F Hellcat

Part Number



Windshield Lines


Lines Fuselage


Lines Fuselage Master


Offsets Wing Layout of Wing

Ordinates for Grumman J2F Duck

Part Number



Hull Lines


Fuselage – Lines


Lines 600# Displacement Wing Tip Float

Ordinates for Grumman JRF Goose

Part Number



Lines – Hull Forward of Step


Lines – Wing Tip Float – 760 Lb. Displacement

Ordinates for Naval Aircraft Factory N3N Yellow Peril

Part Number



Lines – Float (Wing Tip)


Lines – Float (Main)


Lines – Fuselage


Lines – Vertical Tail


Lines – Wing Fillet

Ordinates for North American Aviation B-25 Mitchell

Part Number



Ordinates NA-62 Wing Outer


Ordinates NA-62 Wing Center


Ordinates – Empennage


Ordinates – Fuselage Stringer


Ordinates – Fuselage


Ordinates – Fuselage Stringer


Ordinates – Fuselage


Layout – Outer Wing Flap and Flap Slot Lines

Ordinates for North American Aviation P-51 Mustang

Part Number



Ordinates P-51D – Wing

Ordinates for Republic P-47 Thunderbolt

Part Number



Lines – Engine Cowl


Fuselage Lines


Fuselage Lines

Ordinates for Vickers-Supermarine Spitfire

Part Number


35927 Pg 17

Fuselage Lines

36141 Pg 3

Lines of Radiator Fairing

37927 Pg 16 & Pg 1a

Fin and Rudder Lines

38838 Pg 8

Cowling Lines

39030 Pg 1

Windscreen Lines and Sections P.R.U. Pressure Cabin

39038 Pg 5

Air Intake Lines

Ordinates for Vultee BT-13 Valiant

Part Number



Wing Lines – Center Section


Wing Lines – Outer Panel


Lines – Empennage


Lines Drawing – Fuselage

Accessing the loft and ordinates drawings linked in the table above requires a membership to the AirCorps Library website. Membership is either $9 per month or $75 per year, and gives access to over half a million WWII era engineering drawings on top of the ones listed here, and over 12 thousand aircraft technical manuals.


I hope you’ve enjoyed this deep dive into the world of lofting. If you have any additional questions that I did not answer, please feel free to reach out to me directly at: estera@aircorpsaviation.com
